How to Choose the Right Miniature Circuit Breaker for Your Needs?

Choosing the right Miniature Circuit Breaker (MCB) is crucial for any electrical system. According to industry expert John Smith, “A good MCB protects your circuits better than any fuse.” This highlights the importance of selecting a suitable MCB for your specific needs.

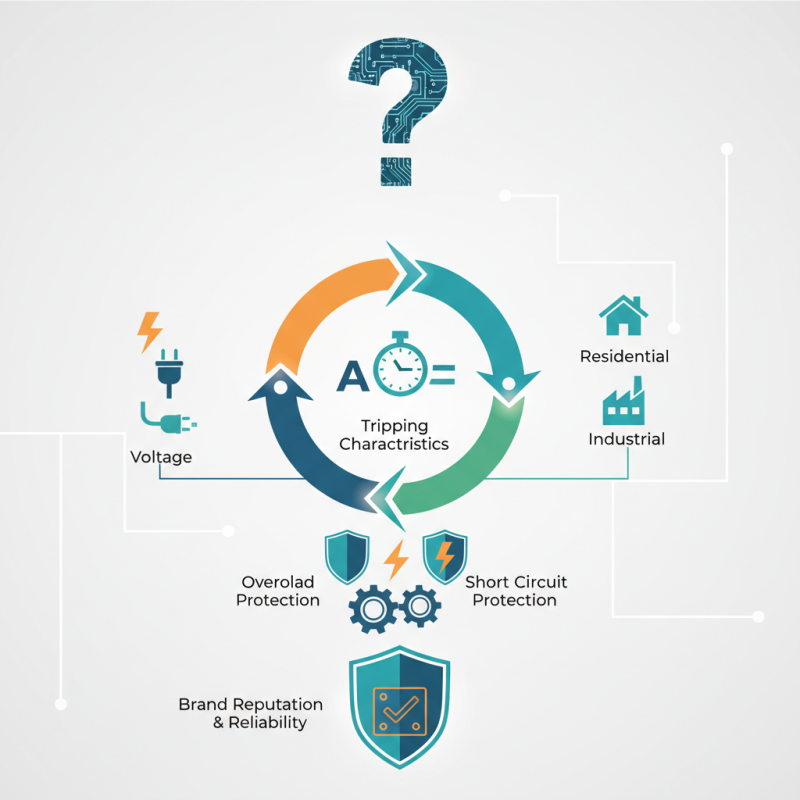

Many factors influence MCB selection, including voltage, current rating, and tripping characteristics. For instance, residential applications often require different specifications compared to industrial use. An ideal MCB should handle overloads and short circuits effectively, ensuring safety. Understanding these elements can be overwhelming for some.

Moreover, not all MCBs are created equal. Some might fall short in performance during critical times, leading to potential hazards. Reflecting on this, one must consider not just the specifications but also the brand reputation and reliability. Choosing the right MCB is more than just a decision; it’s about ensuring safety and functionality in your electrical installations.

Understanding Miniature Circuit Breakers and Their Functions

Miniature circuit breakers (MCBs) are essential in modern electrical systems. They protect circuits from overloads and short circuits. Understanding how MCBs function is key to selecting the right one. An MCB detects faults and disconnects electrical flow. It does this quickly, helping to prevent fires and equipment damage. When an overload occurs, the device trips, cutting off the power supply.

Choosing an MCB requires knowledge of your electrical system. Look at the load current and type of application. Different MCBs have different ratings. Some are designed for lighting circuits, while others cater to heavy machines. The tripping curve is also important. Curve B is for residential use. Curve C suits industrial applications better. This can feel overwhelming at times.

Reflect on your specific needs and usage patterns. It’s crucial to assess if your chosen MCB can handle potential surges. Compatibility with existing systems should also be considered. Remember, neglecting these details can lead to future issues. Ultimately, the right choice ensures safety and efficiency.

Key Factors to Consider When Selecting a Miniature Circuit Breaker

When selecting a miniature circuit breaker (MCB), understanding key factors is crucial. A primary consideration is the MCB's current rating. Typical residential circuits require breakers that handle 16A or 20A. Overloading may lead to frequent tripping, resulting in inconvenience. Ideally, the breaker should match your circuit's load but have a slight buffer.

Another aspect is the breaking capacity. This capacity measures how much fault current the MCB can interrupt safely. According to industry reports, a common breaking capacity for household applications is 6kA. However, in industrial settings, higher breaking capacities up to 10kA or more may be warranted. It's vital to analyze your specific electrical system to prevent safety hazards.

Additionally, consider the type of MCB. Types B, C, and D trip at different levels of overload. Type B is ideal for residential use, tripping between 3 to 5 times the rated current. Type C suits commercial environments with inductive loads. Selecting the wrong type can lead to unnecessary nuisance tripping. Reflecting on these factors before making a choice is essential for optimal circuit safety and performance.

Identifying the Correct Amperage for Your Electrical System

Choosing the right amperage for your electrical system is crucial. The correct amperage determines how well your circuits will function. If the amperage is too low, it may lead to frequent tripping. Equipment could fail under stress, causing inconvenience. On the flip side, selecting a breaker with too high an amperage can be dangerous. Overloading the system may pose safety risks.

Start by calculating your total electrical load. Add up the wattage of all devices you plan to use. Divide this number by the voltage of your system. This will guide you to the appropriate amperage rating. However, consider future needs as well. It’s not just about the present but also potential expansions.

Don’t overlook the type of appliances you use. Certain devices require specific considerations. High inrush current from motors can mislead calculations. Be aware that sometimes calculations might need adjustments. Factors like wiring length and type can also affect your choice. Reflecting on these details helps ensure safety and efficiency in your electrical system.

Evaluating Different Types and Ratings of Miniature Circuit Breakers

Choosing the right miniature circuit breaker (MCB) involves understanding their types and ratings. There are several types available, including Type B, C, and D. Each type responds differently to overloads and short circuits. For example, Type B is suitable for residential applications, as it trips at lower currents. Type C, on the other hand, is ideal for commercial setups with moderate inrush currents. Think about your specific needs before making a choice.

The rating of an MCB is also essential. Current ratings generally range from 6A to 63A. Selecting the right rating depends on the load connected to the circuit. Too low a rating can cause nuisance tripping, while too high can pose safety risks. It may be easy to overlook these calculations. A wrong choice can lead to frequent trips or, worse, equipment damage. Always reflect on your electrical load needs and consider future upgrades too.

Be cautious about installation. Proper installation can affect functionality. A poorly installed MCB may not trip efficiently during a fault. Ensuring correct placement in the electrical panel is crucial. Sometimes, it's tempting to cut corners to save time. However, this can lead to bigger issues down the line. Take a moment to evaluate your options thoroughly. Consider asking a professional for insights if necessary.

Installation Tips and Best Practices for Miniature Circuit Breakers

When installing miniature circuit breakers (MCBs), attention to detail is crucial. Begin by ensuring the electrical panel is de-energized. This eliminates risks during installation. Use appropriate tools for wiring and securing the MCB. The connectors should be tightly fastened but not overtightened. This avoids damage to the device.

Consider the layout of your circuit. MCBs should be grouped according to their function or the areas they protect. For example, one breaker could serve lighting, while another protects outlets. Proper labeling is essential for easy identification. A common mistake is neglecting to label clearly. This can lead to confusion during future maintenance.

Make sure to check the trip settings on your MCB. Adjust them based on your specific electrical load. Some users might forget this step, leading to nuisance tripping or inadequate protection. Also, regularly test the MCB to ensure reliability. A breaker that hasn’t been tested can fail when you need it most. Remember, practical experience is invaluable, so reflect on past installations to improve your approach.
